Thermaltake SMART 600W ATX 12V V2.3/EPS 12V 80 PLUS Certified Active PFC Power Supply PS-SPD-0600NPCWUS-W
Product Details
Style: Quite Fan
Size: 600W
Brand: Thermaltake
MPN: PS-SPD-0600NPCWUS-W
UPC: 841163062241
EAN: 0841163062241
- Number of USB 2.0 Ports: 1
- Brand Name: Thermaltake
- Series: TMT-PSSPD0600NPCWUSW
- California residents: Click here for Proposition 65 warning
- Item model number: PS-SPD-0600NPCWUS-W
- Item Weight: 2.2 pounds
- Product Dimensions: 8.9 x 4 x 7 inches
- Item Dimensions L x W x H: 8.9 x 4 x 7 inches
- Voltage: 120 volts
- Shipping Weight: 4.15 pounds
- Date First Available: September 1, 2015
- Delivers 600 watt Continuous output @ +40C. Compliance with Intel ATX 12 Volt 2.31 & EPS 12V 2.92 standards
- 80 PLUS Certified 80percentage efficiency under typical load. Power good signal is 100 to 500 millisecond

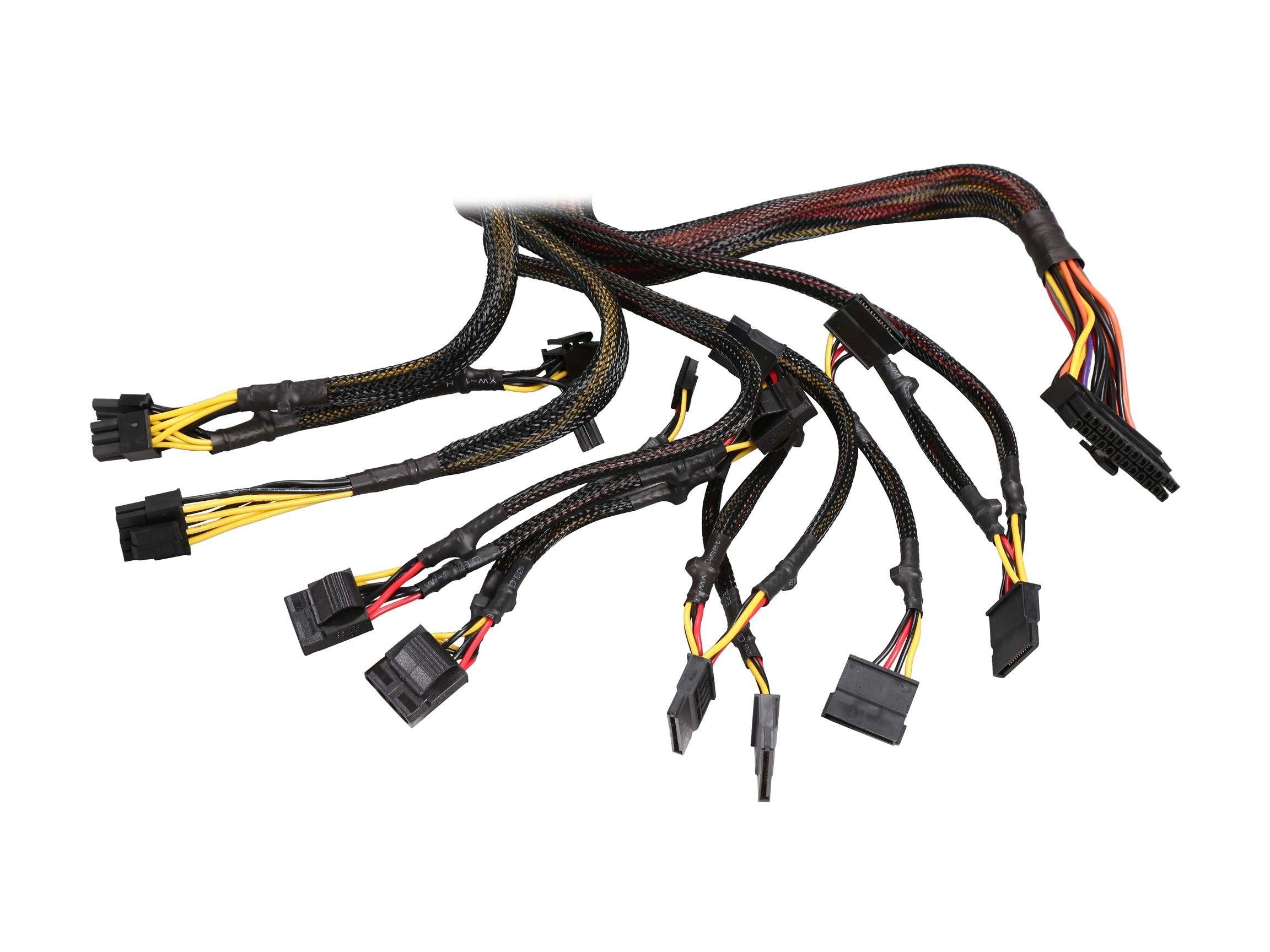

- Supports (2) PCI E 6+2pin Connectors. Active (PFC) Power Factor Correction, MTBF: 100,000 hours
- Industry Grade Protections: (OPP) Over Power Protection, (OVP) Over Voltage Protection, (SCP) Short Circuit Protection
- Hold up time is 16 millisecond minimum within 60 percent load. Input frequency range 50 to 60 in Hertz
- High Quality Components
- Equipped with a powerful +12V rail, superior performance under all types of system loading
- 5 Year Warranty
Style:Quite Fan | Size:600W Incorporating various high-quality components, the
Smart Series – models are rated from 500W to 700W – saves energy through its
high efficiency of up to 86% and accommodates any mainstream build with the
most demanding requirements. An embedded intelligent cooling fan delivers
excellent airflow at an exceptionally low noise level. Additionally, the
Single +12V rail design enables non-stop usage with stable and reliable
performance. P/N: PS-SPD-0600NPCW-W Short P/N: SPD-0600P Model: SP-600AH2NKW
Type: Intel ATX 12V 2.3 Max. Output Capacity : 600W Color: Black Dimension (H
x W x D): 86mm x 150mm x 140mm PFC (Power Factor Correction): Active PFC Power
Good Signal: 100-500 msec Hold Up Time : 16msec (minimum) within 60% load
Input current: 10A max Input Frequency Range: 50 Hz – 60 Hz Input Voltage:
100Vac – 240Vac Operating Temperature: 5? to +40? Operating Humidity: 20% to
85%,non-condensing Operating Temperature: -40 ? to +55 ? Storage Humidity: 10%

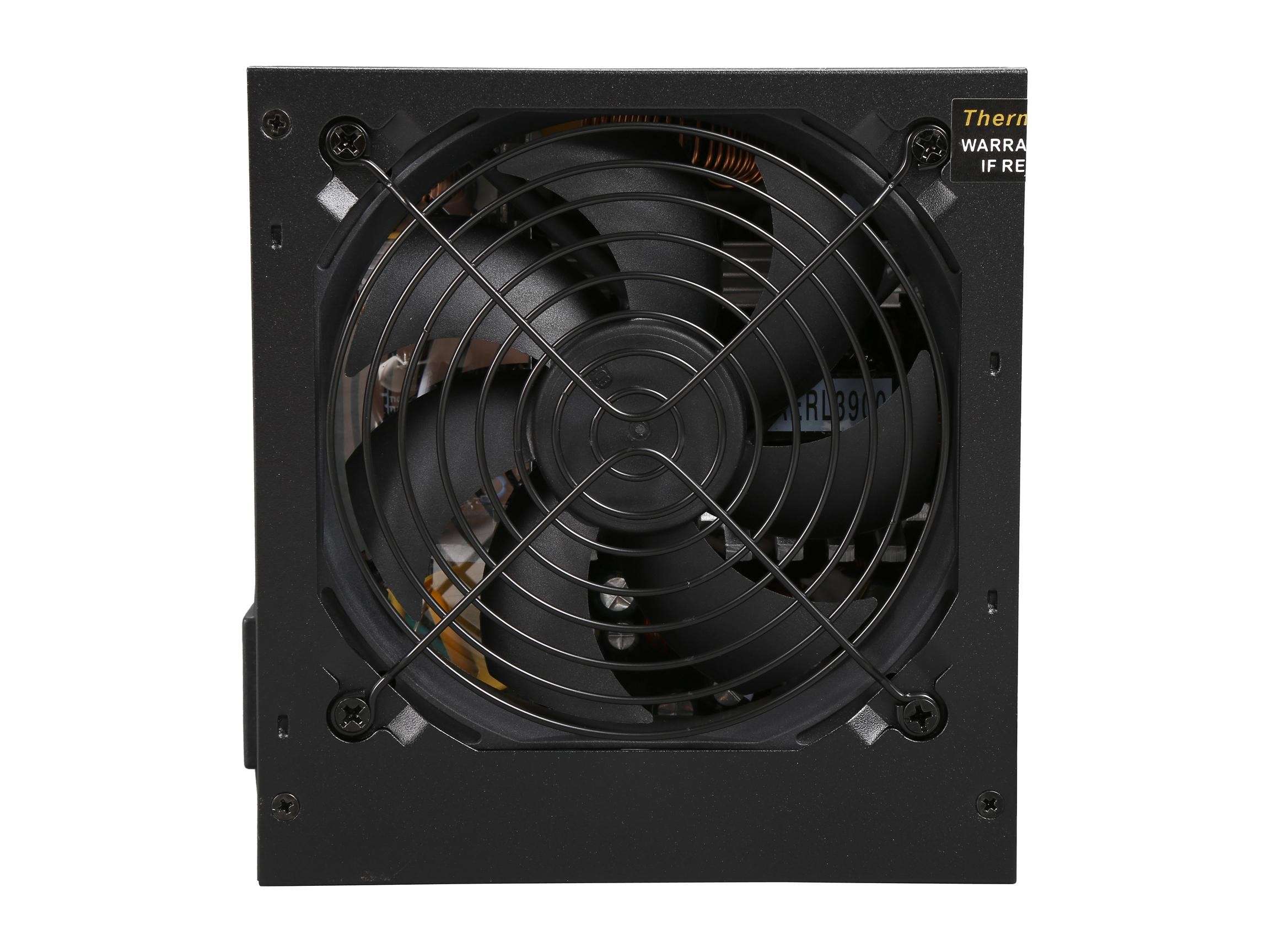

to 95%, non-condensing Cooling System: 120mm Fan: 1800 R.P.M. ± 10%
Efficiency: 82-86% efficiency @ 20-100% load MTBF: 100,000 hrs minimum Safety
Approval: CE/CB/TUV/ UL/ FCC PCI-E Connector: PCI-E 6+2pin x 2
