Description
Motherboard
- SSI-CEB (305mm x 267mm) [12″ x 10.5″]
- EATX (305mm x 280mm) [12″ x 11″]
- ATX (305mm × 244 mm) [12″ × 9.6″]
- MicroATX (245 x 245mm) [9.6″ × 9.6″]
- FlexATX (229 × 191 mm) [9″ × 7.5″]
- Mini-DTX (203mm × 170 mm) [8″ × 6.7″]
- Mini-ITX (170mm × 170 mm) [6.7″ × 6.7″]
CPU Air Coolers
- up to 153mm tall
CPU Liquid Coolers
- 1x 360mm liquid cooler (maximum 395mm wide)
- or 1x 240mm liquid cooler
- or up to 3x 120mm liquid coolers
Fan Mounting

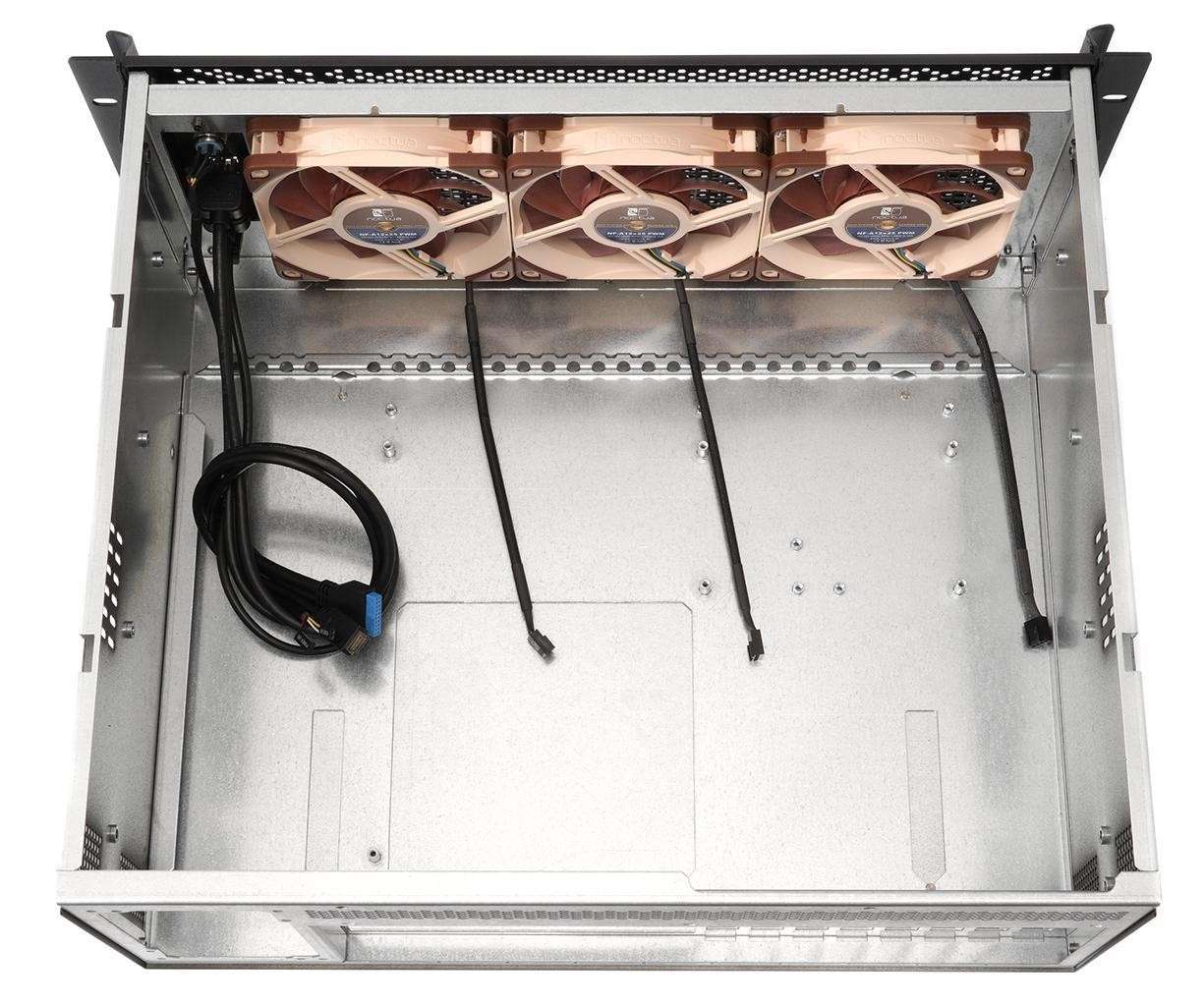

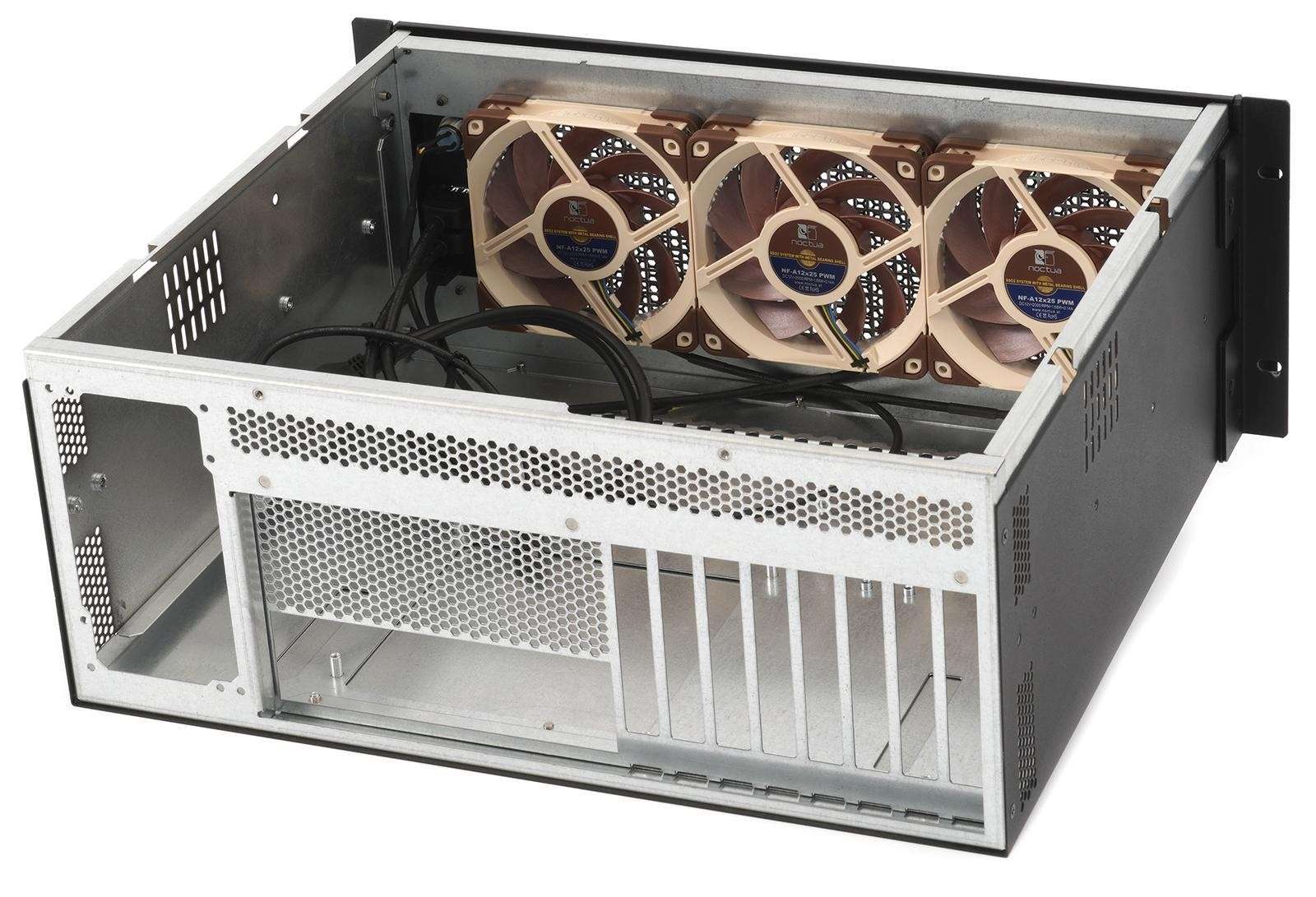

- Front: 3x 120mm x 25mm fans (not included)
GPU / PCIe Cards
- 8x full height PCIe card slot cutouts
- Maximum card height: 158mm
- Maximum card length: 324mm (with 25mm thick front fans)
- LIQUID COOLING NOTE: radiators reduce the available depth inside the case for long GPUs. Inside of case is 349mm deep. Thickness of radiator + thickness of case fans + GPU length must equal less than 349mm total.
Storage
- 2x 2.5″ SSD mounts above PSU
- Case is designed for use of M.2 storage on motherboard
Front Panel I/O
- 1x USB C 10Gbps Port
- 2x USB 3.0 Ports
- 1x Momentary Switch / Power Status LED (Ring Shape, White)
Power Supply
- ATX: Maximum of 270mm length
Material
- Chassis – ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panel – ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears – ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
- Finish – Powder Coat, Fine Texture
Finish
- Fine texture powder coated chassis and panels
Branding
- Case is unbranded on interior and exterior of chassis.
Dimensions
- Case: 14.89″ x 17.00″ x 4U (6.96″) [DxWxH] (378mm x 432mm x 176.75mm)
- Shipping Box: 21″ x 19″ x 12″ (Outside Dimensions, Double Wall Box)
Rack Rails
- Slides sold seperately
- Sliger PM-Series Ball Bearing Slides
- General Devices C300-S Series
Warranty
- 5 Year Warranty (Please see our warranty policy for additional conditions, exclusions, and limitations.)
Homologation
- HTS Tariff Code: 8473.30.00.02
- RoHS, RoHS-2, RoHS, REACH, and SVHC compliant
Country of Origin
- United States of America
- TAA Compliant
*NOTE* Fans and AIO’s are not included
