Description

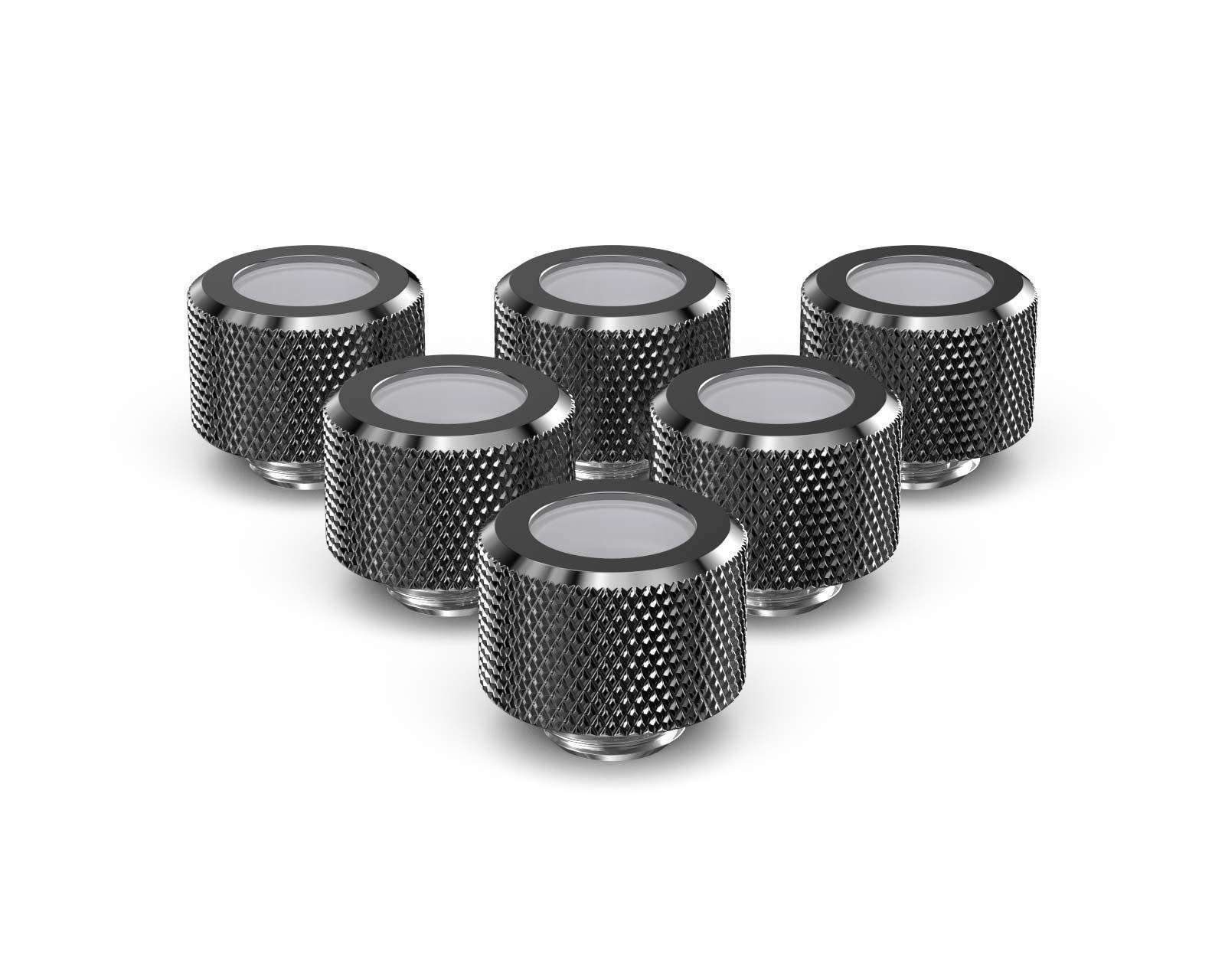

PrimoChill is bringing SX colors to metric sized compression rigid fittings! These fittings are designed to secure rigid hard tubing to your components and do so in style. Taking your system to the next level is an art form driven by color and textures. These fittings are easy to use and bring vivid colors and superior durability to any system.
Features
- SpectraX powder coated caps for color consistency.
- G 1/4in. thread bright nickel plated brass base for corrosion resistance
- Quick and simple installation
Specifications
- Industry Standard G 1/4in. threads
- Nickel plated brass base
- Diamond knurled cap
- Available in over 20 different finishes
Compatibility

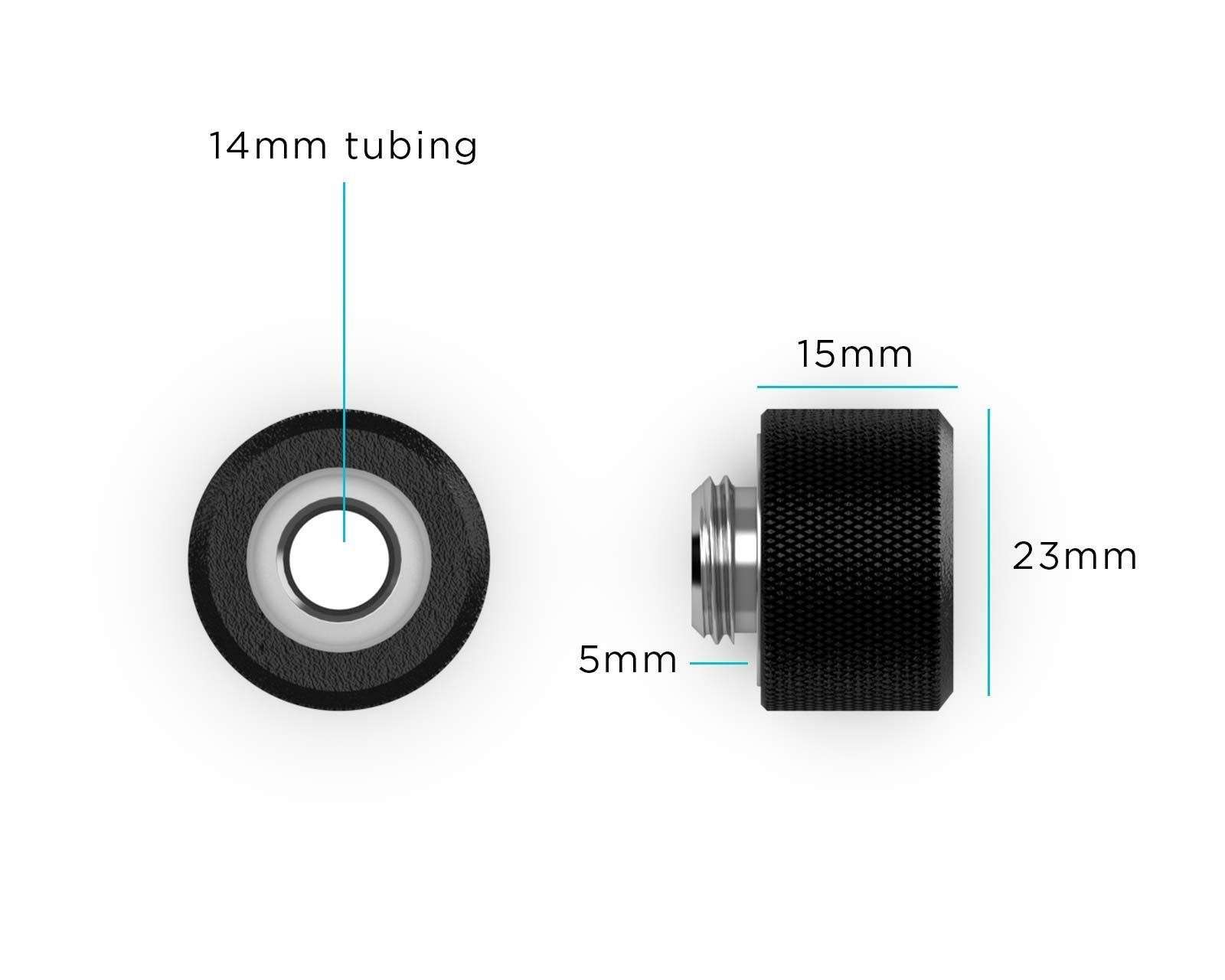

These fittings are designed to work with the tubing below.
- 14mm OD Rigid PETG tubing
- 14mm OD Rigid PMMA tubing
- 14mm OD Rigid Copper tubing

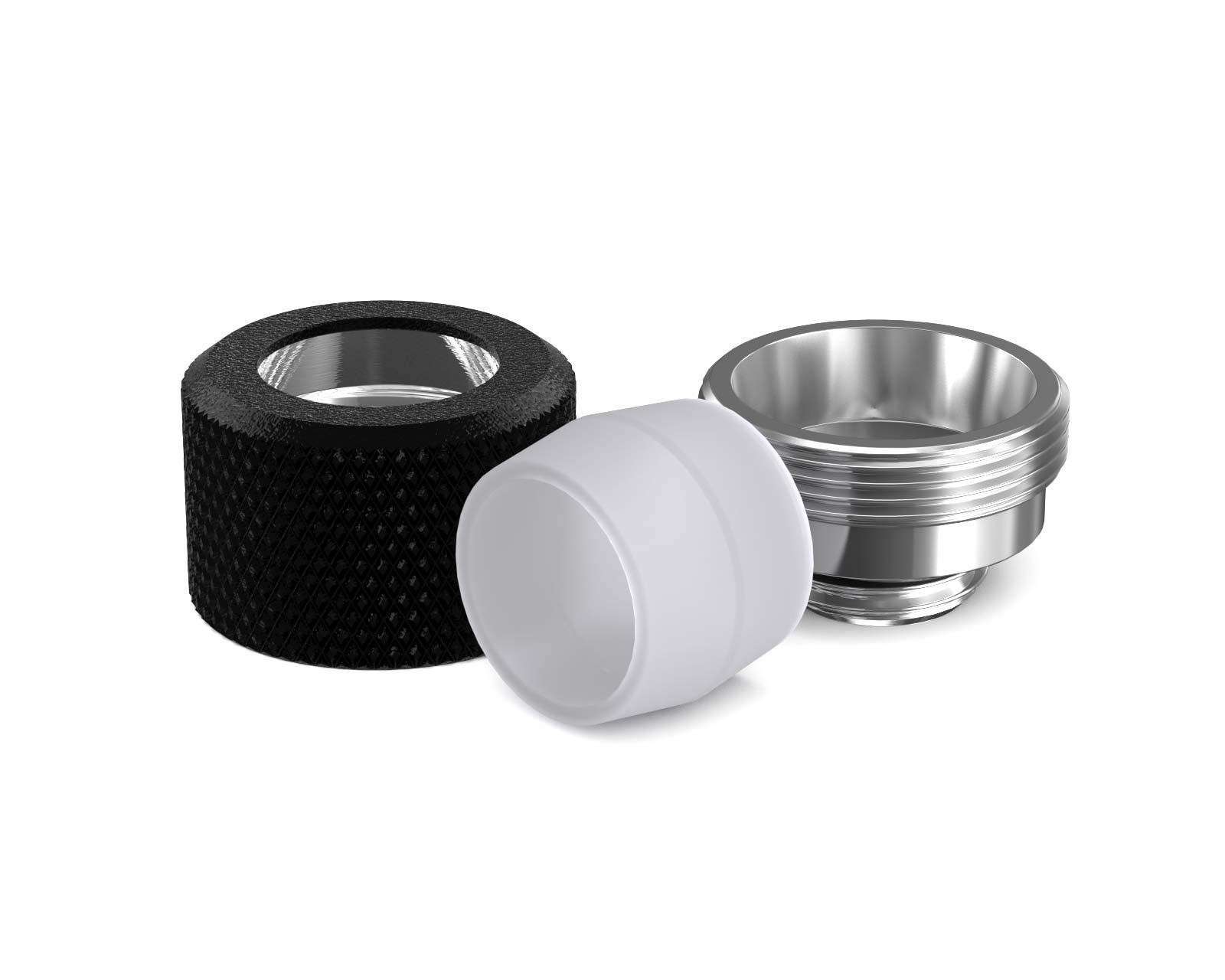

Included Parts
- 6x Coated cap
- 6x Nickel plated base
- 6x Bottom sealing o-ring
- 6x Tubing sleeve seal insert
Installation
- No installation tool required. Finger tighten only.
- SX caps are coated with a durable powder coat, but we still recommend handling with care so you can enjoy the finish for years to come. If tools have to be used to loosen, make sure to cover them with a soft material to protect the finish.
Warnings:
Although aluminum is used for the outside compression ring, no aluminum comes in direct contact with the fluid so mixed metal corrosion is not an issue. CANDY SX FINISHES CAN VARY IN TONE BASED ON SURFACES. KNURLED SURFACES APPEAR DARKER THAN SMOOTH SURFACES. Not responsible for any hardware damage. Use at your own risk.
