Fanned Barebone
  • Fanned Barebone
  • Fanned Barebone
  • Fanned Barebone
  • Fanned Barebone

    • Fanned Barebone

    (0 customer reviews) SKU: N82E16856179007
    $0.00
    In Stock

    This product is currently out of stock and unavailable.

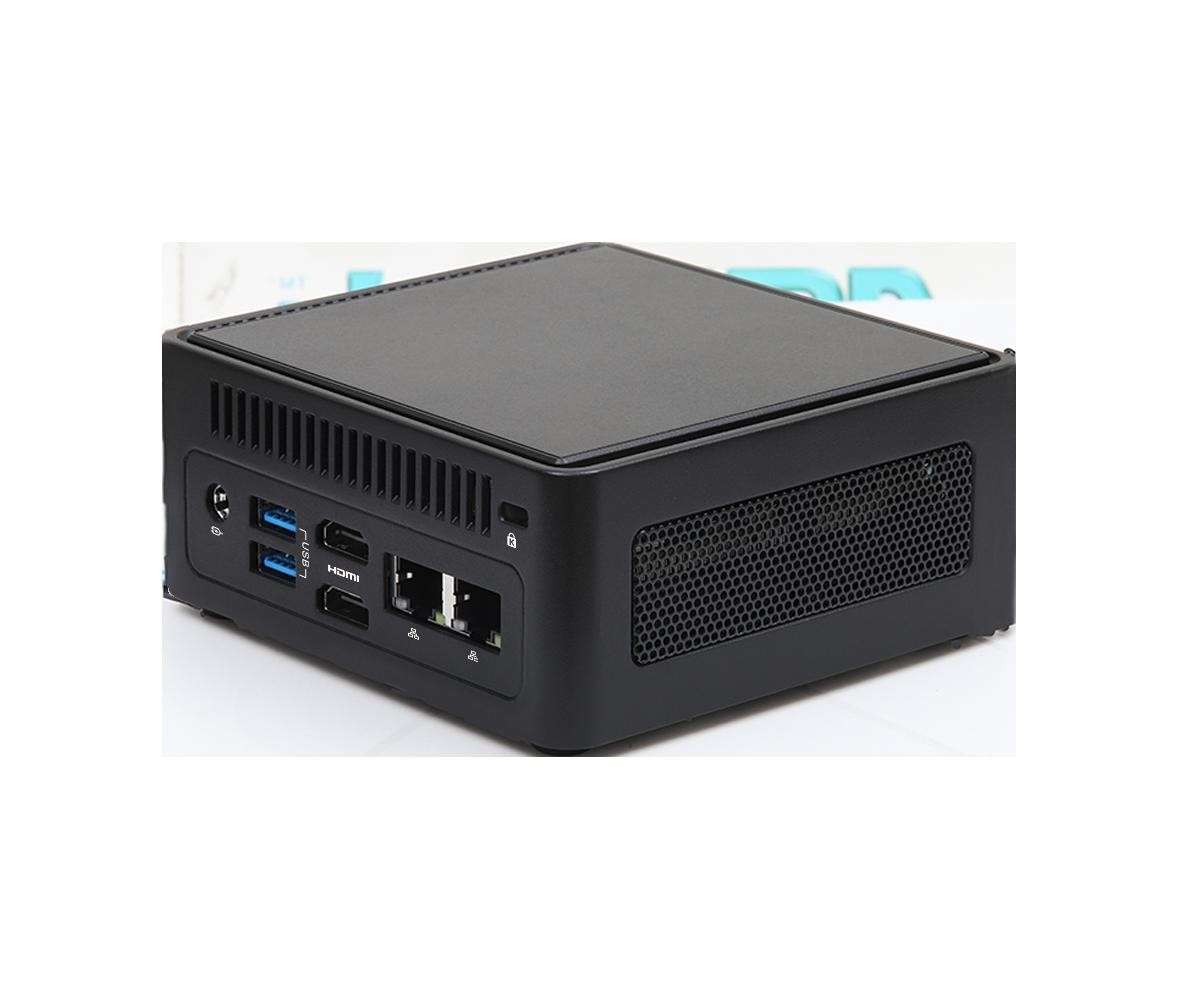

    Compact Intel Mini PC Barebone with Meteor Lake-H processors, DDR5 memory support up to 96GB, multiple USB and M.2 slots, dual 2.5Gb LAN, quad display support, and advanced security features.

    • Tool-free installation with slide-and-lock design
    • USB 3.0 with 5Gbps transfer speed and UASP acceleration
    • Compatible with 7mm and 9.5mm 2.5" SATA HDD/SSD
    • Aluminum housing with effective heat dissipation
    Free shipping
    Secure checkout
    SKU: N82E16856179007

    Description

    The Intel Fanned Barebone Mini PC features the latest IntelĀ® Coreā„¢ Ultra processors based on the Meteor Lake-H architecture, delivering high performance and efficiency for compact computing needs. It supports up to 96GB of high-speed DDR5 5600MHz memory across two SO-DIMM slots. Connectivity options include USB4/Thunderbolt 4, multiple USB3.2 Gen2 ports, dual M.2 Key M slots for fast NVMe storage, and a dedicated M.2 Key E slot for WiFi 6E wireless modules. Networking is robust with dual Intel 2.5 Gigabit LAN ports. The system supports quad display output via multiple HDMI 2.1 and DisplayPort interfaces. Advanced security and management features include IntelĀ® PTT, IntelĀ® vPro, and VMD RAID 0/1 support. The compact and fan-cooled chassis measures 117.5 x 110.0 x 49 mm and is powered by a 19V adapter, making it ideal for versatile, high-performance mini PC builds.

    Additional information

    Processor

    Intel Core Ultra 5 125H
    Processor Architecture

    Meteor Lake-H
    Memory Type

    DDR5 SDRAM
    Max Memory

    96GB
    Max Memory Capacity

    64GB
    Memory Slots

    2 x SODIMM
    USB Ports

    Dual Thunderbolt 4 Type-C, 1x USB 20Gbps Type-C (front), 6x USB 10Gbps
    Storage Interfaces

    2 x M.2
    Wireless Module

    1 x M.2 Key E (WiFi-6E Module)
    Networking

    Dual Intel 2.5Gb Ethernet, Integrated WiFi 6E, Bluetooth 5.2
    Wireless Support

    WiFi 6E via M.2 Key E slot
    LAN

    2 x Intel 2.5Gb Ethernet
    Display Outputs

    2 HDMI 2.1 TMDS, 1 DisplayPort 2.1 (via USB4), 1 DisplayPort 1.4a (via Type-C)
    Security Features

    IntelĀ® PTT, IntelĀ® vPro
    Security

    Data Security Isolation Mechanism
    RAID Support

    RAID 0/1/5/10 (SATA)
    Power Adapter

    19V
    Cooling

    Fanned
    Power Input

    19V adapter
    Dimensions

    117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93")
    Cooling Solution

    Dual Fan
    Form Factor

    Mini-PC Barebone
    Dimensions (WxDxH)

    125mm x 100mm x 63.5mm
