Description

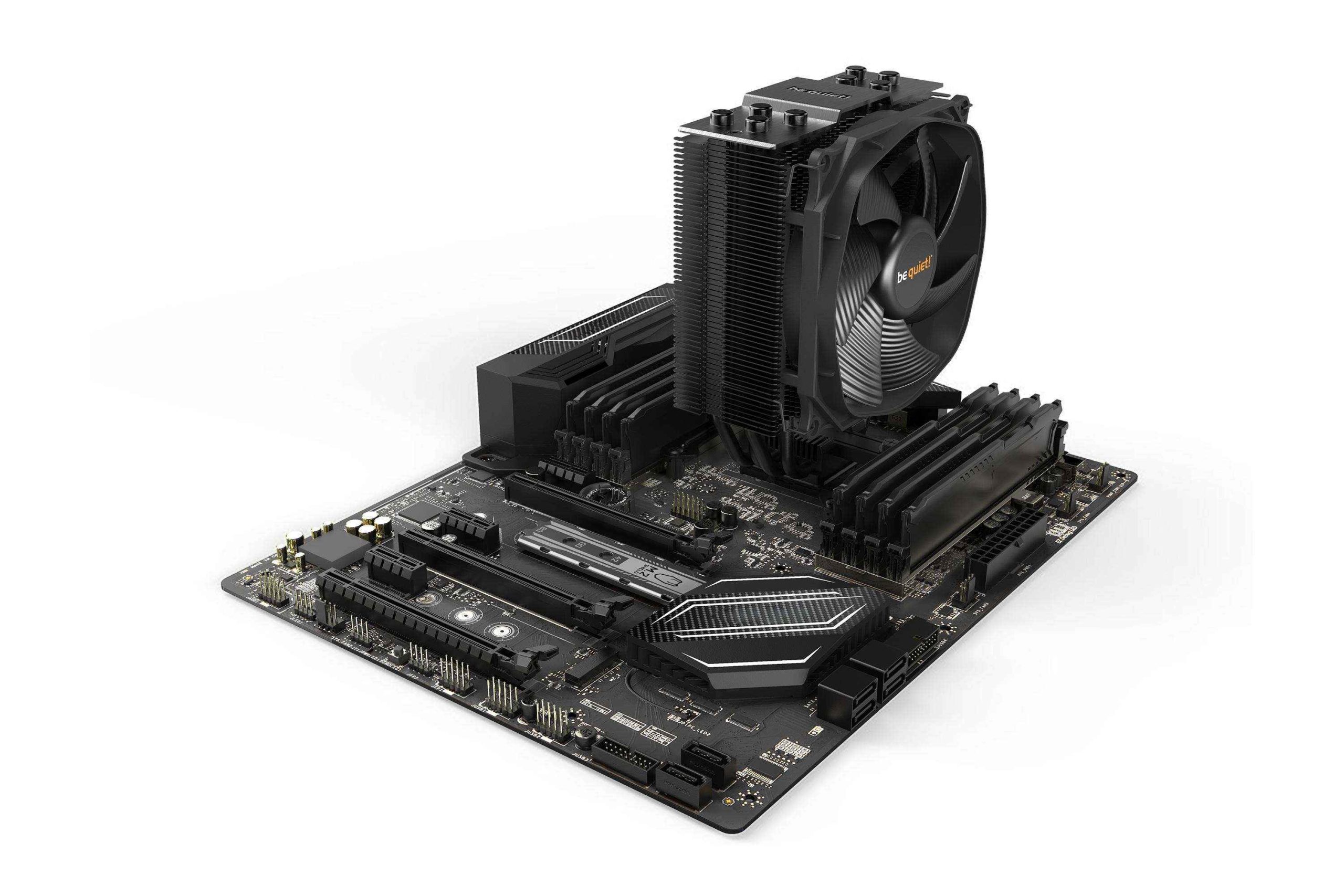

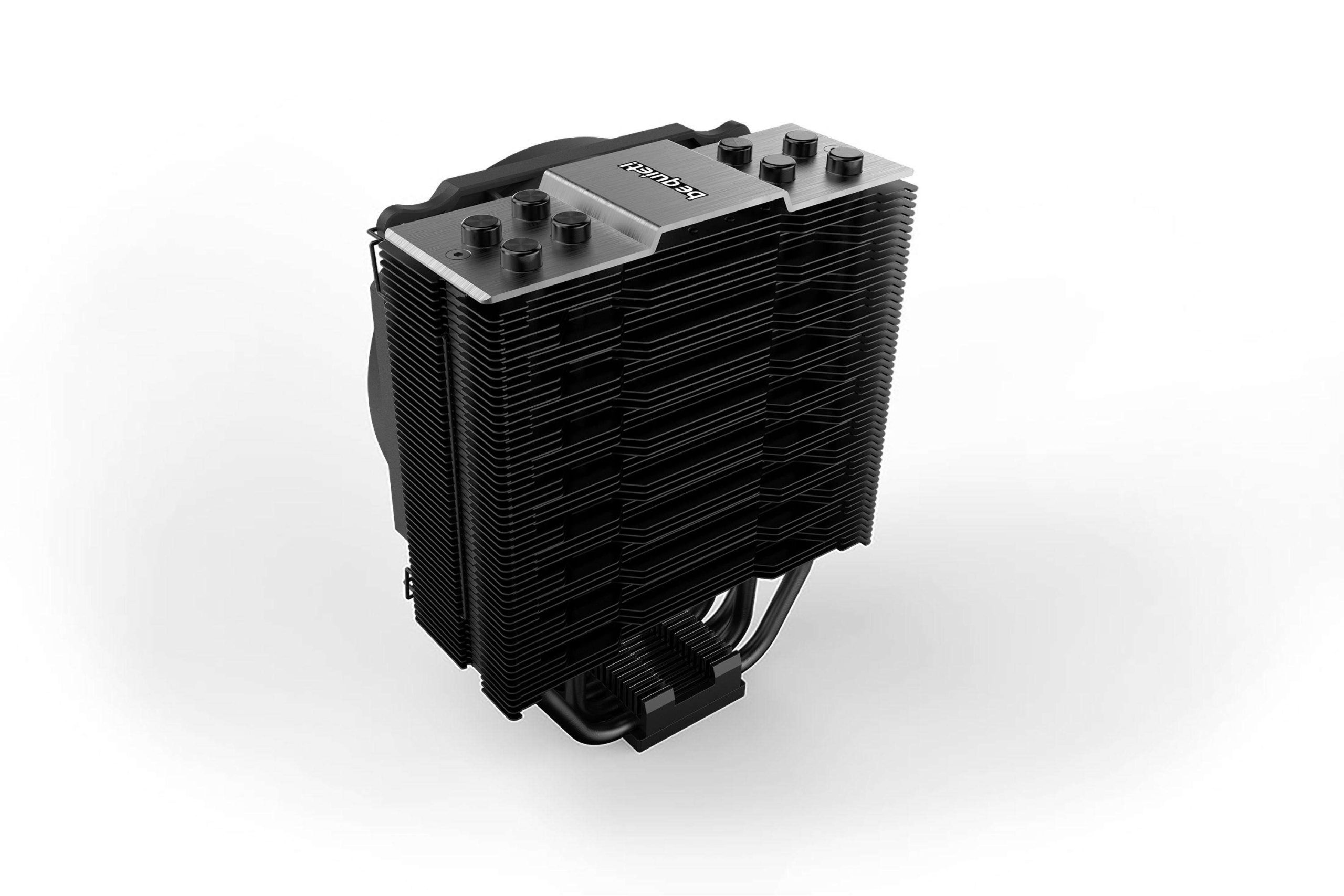

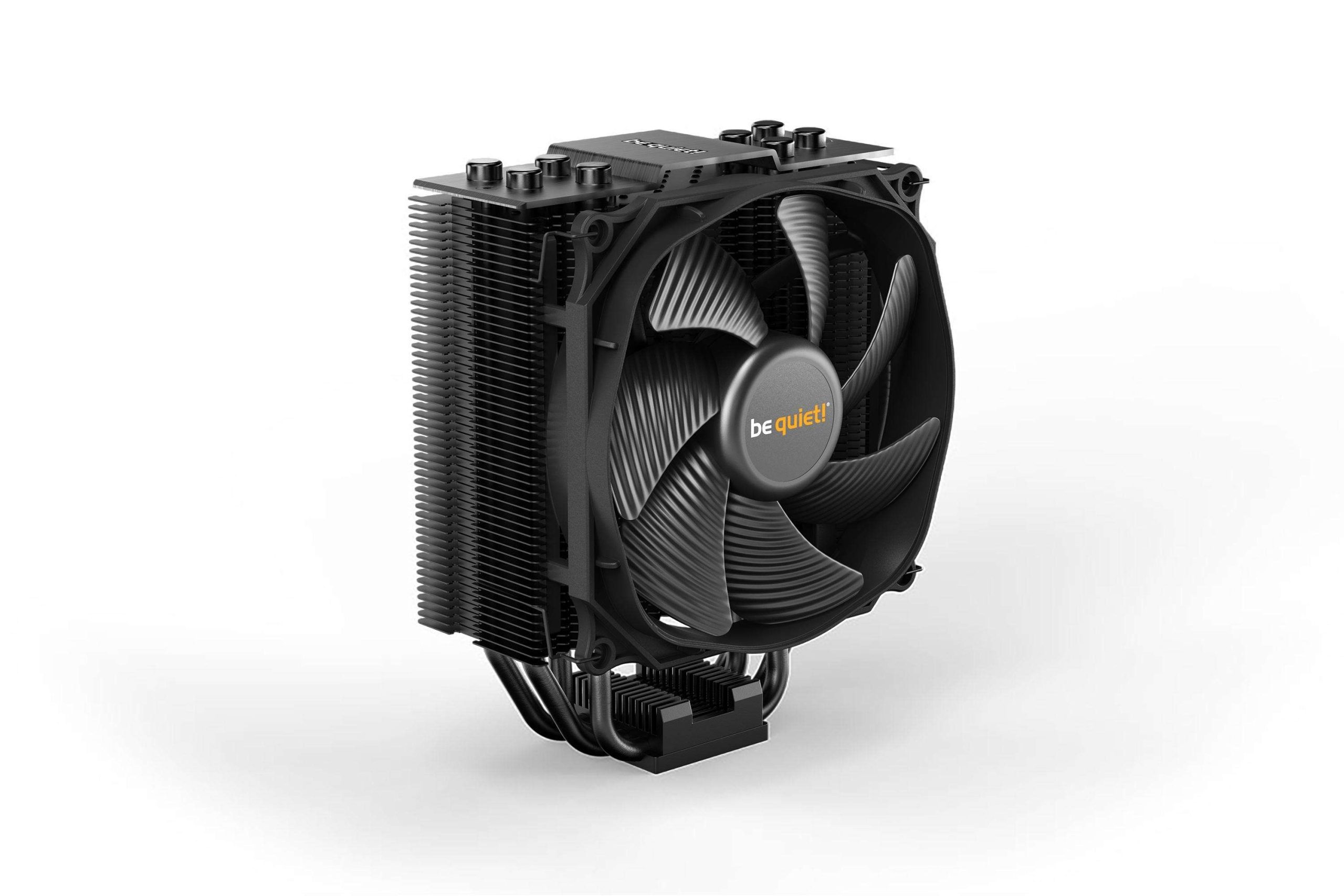

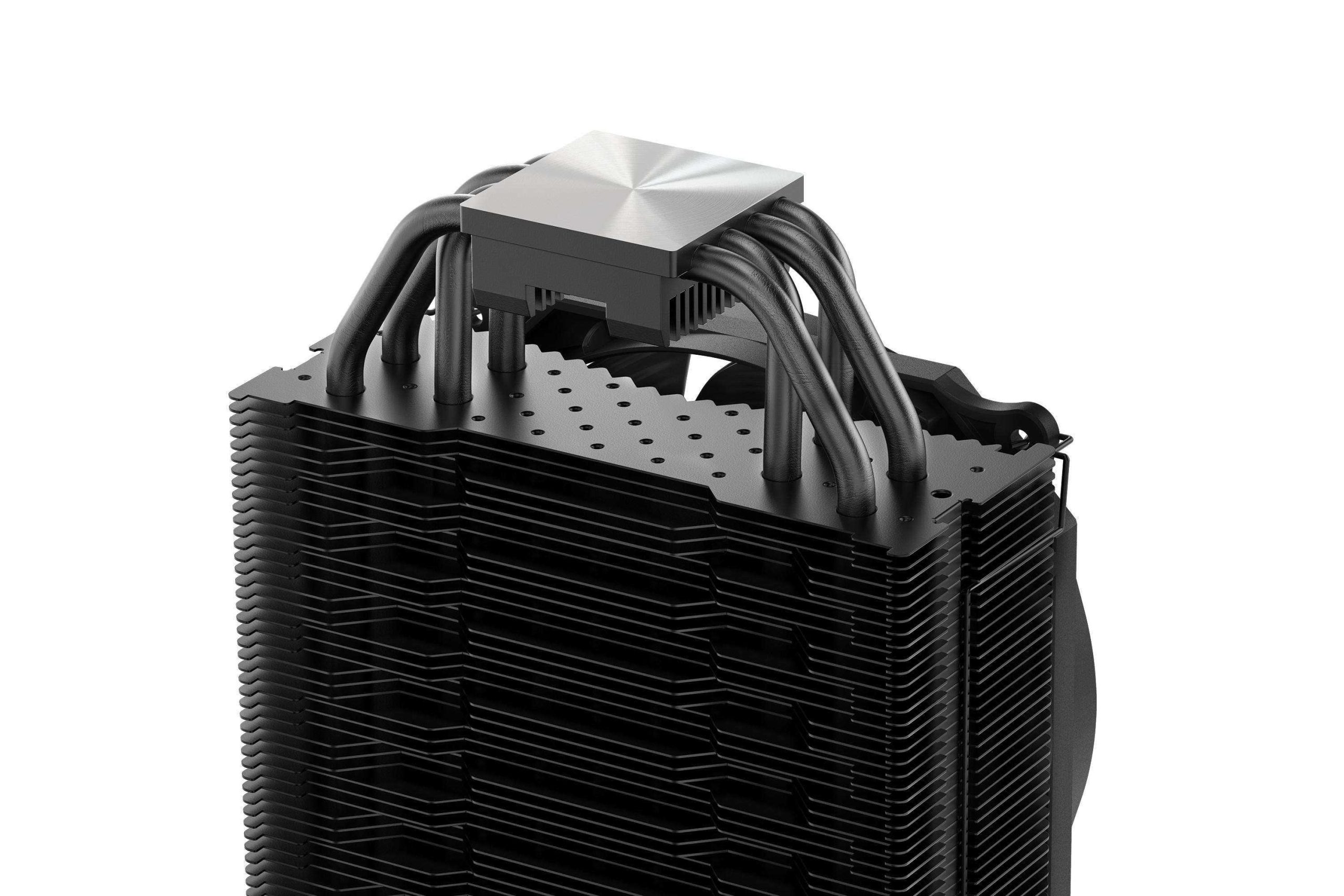

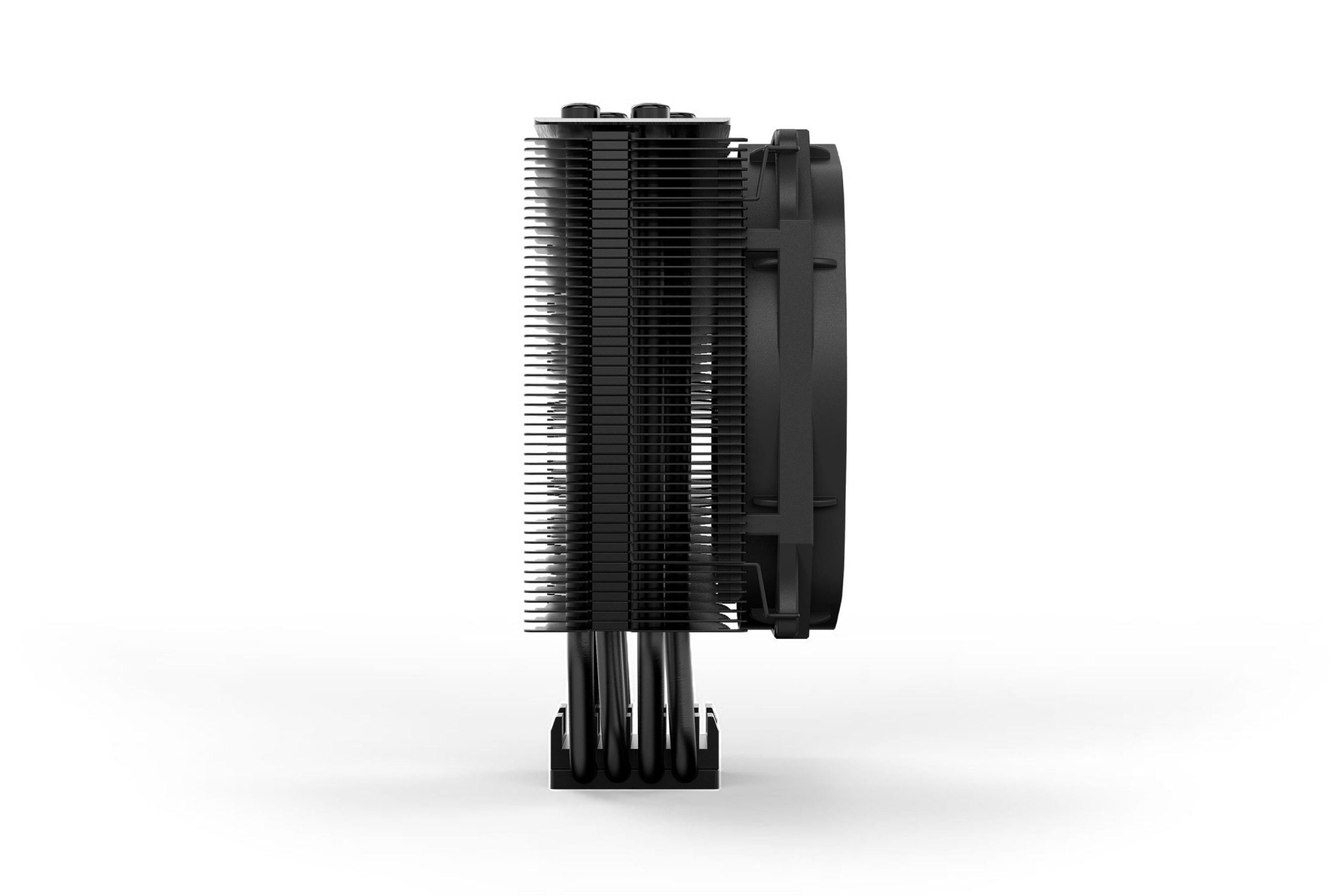

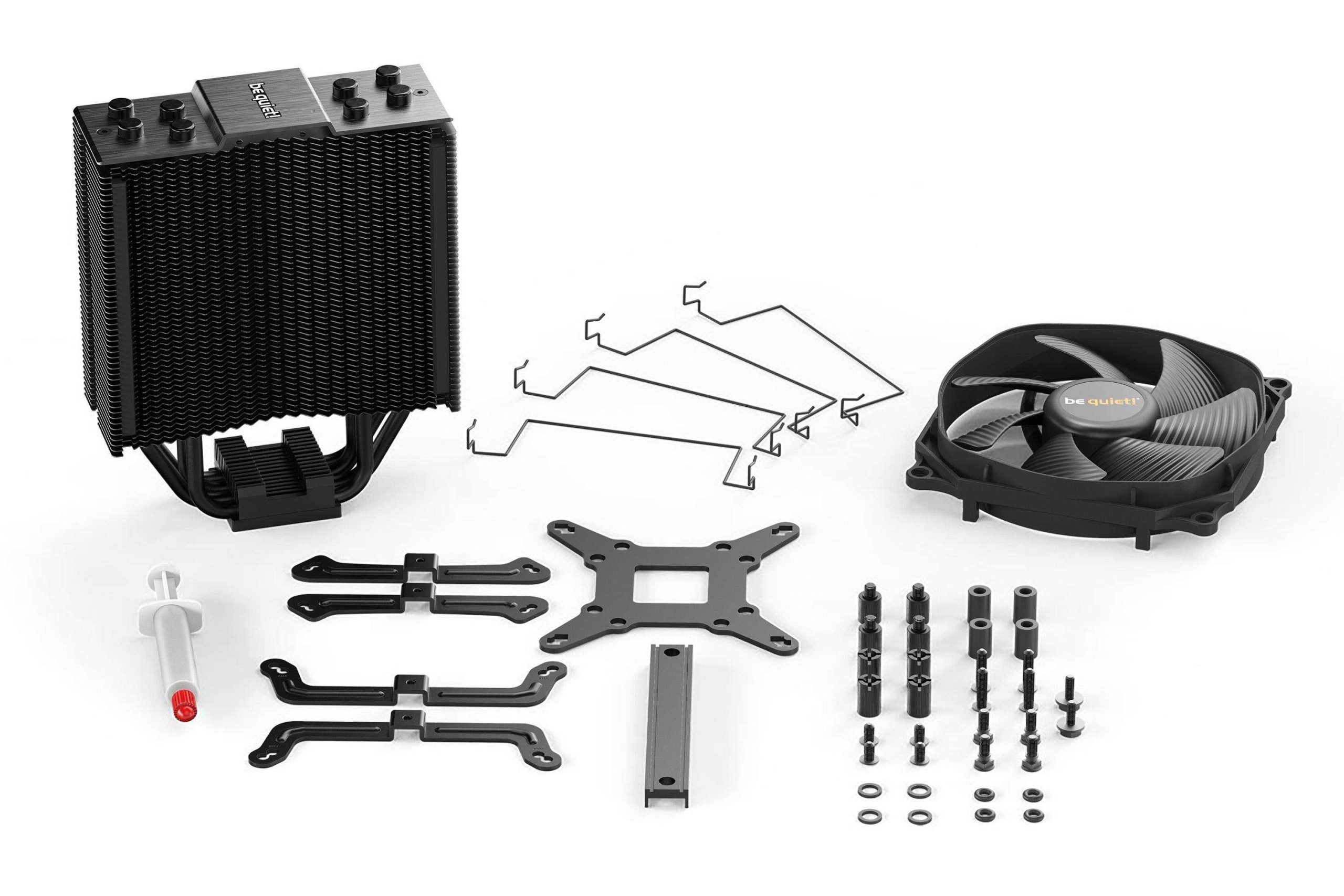

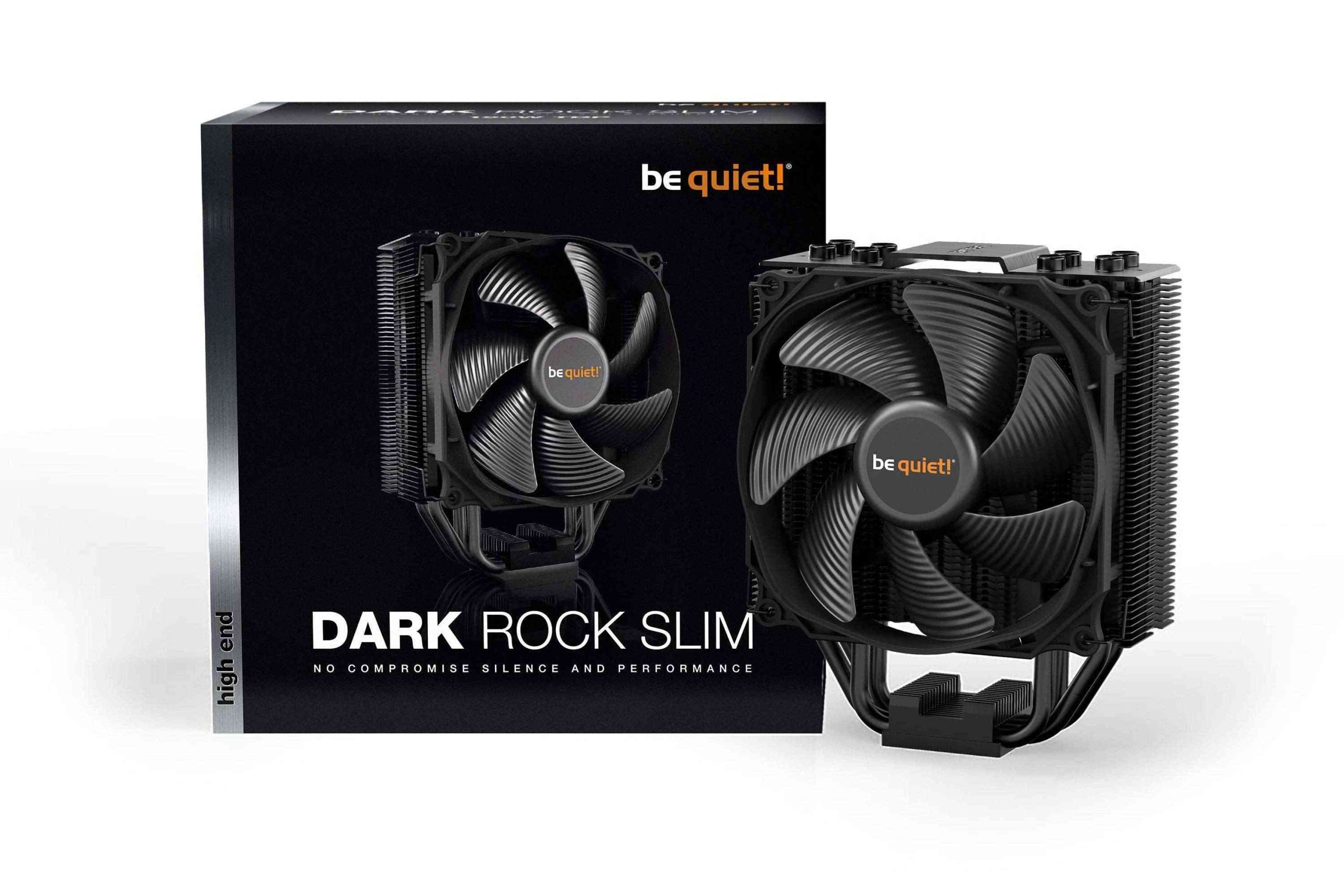

Compact construction does not block memory slots Silent Wings 3 120mm PWM fan features an advanced fluid-dynamic bearing and a smooth 6-pole motor Virtually inaudible with only 23.6 dB (A) at maximum fan speed Four high-performance copper heat pipes that provide maximal heat conductance Wave-contoured cooling fins for increased air circulation Special black coating with ceramic particles enables perfect heat transfer Supports an additional 120mm fan; fan clips are included in scope of delivery Easily installable black installation kit can be mounted from above Elegant, brushed aluminum top cover with diamond cut finish 3-year manufacturer’s warranty Product conception, design and quality control in Germany Model Dark Rock Slim Overall dimensions without mounting material (L x W x H), (mm) 72 x 127 x 159.4 Total weight (kg) 0.62 TDP (W) 180
Socket compatibility Intel: LGA 1200/ 1150 / 1151 / 1155 / 1156 / 1366 / 2011(-3) Square ILM / 2066
AMD: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+) Fan model, number 1x Silent Wings 120mm PWM Decoupled fan mounting? Overall noise level (dB (A) ) @ 50/75/100% (rpm) 11 / 16.9 / 23.6 Heatsink specifications Dimensions (L x W x H), (mm) 47, 4 x 127 x 159.4 Number of fins 51 Fin material Aluminum Base material Copper CPU contact surface CNC machined Heatpipe number / Diameter (mm) 4 / 6 Surface treatment Aluminum / black ceramic spray painted Fan specifications Fan dimensions (mm) 120 x 120 x 23 +Silent Wings? Speed @ 100% PWM /12V (rpm) 1, 500 Bearing technology Fluid Dynamic Bearing Motor technology 6-pole fan motor Rated voltage (V) 12 Input current (A) 0.08 Input power (W) 0.96 Connector 4-pin PWM Cable length (mm) 220 Lifespan (h / 25°C) 300, 000
