Additional information

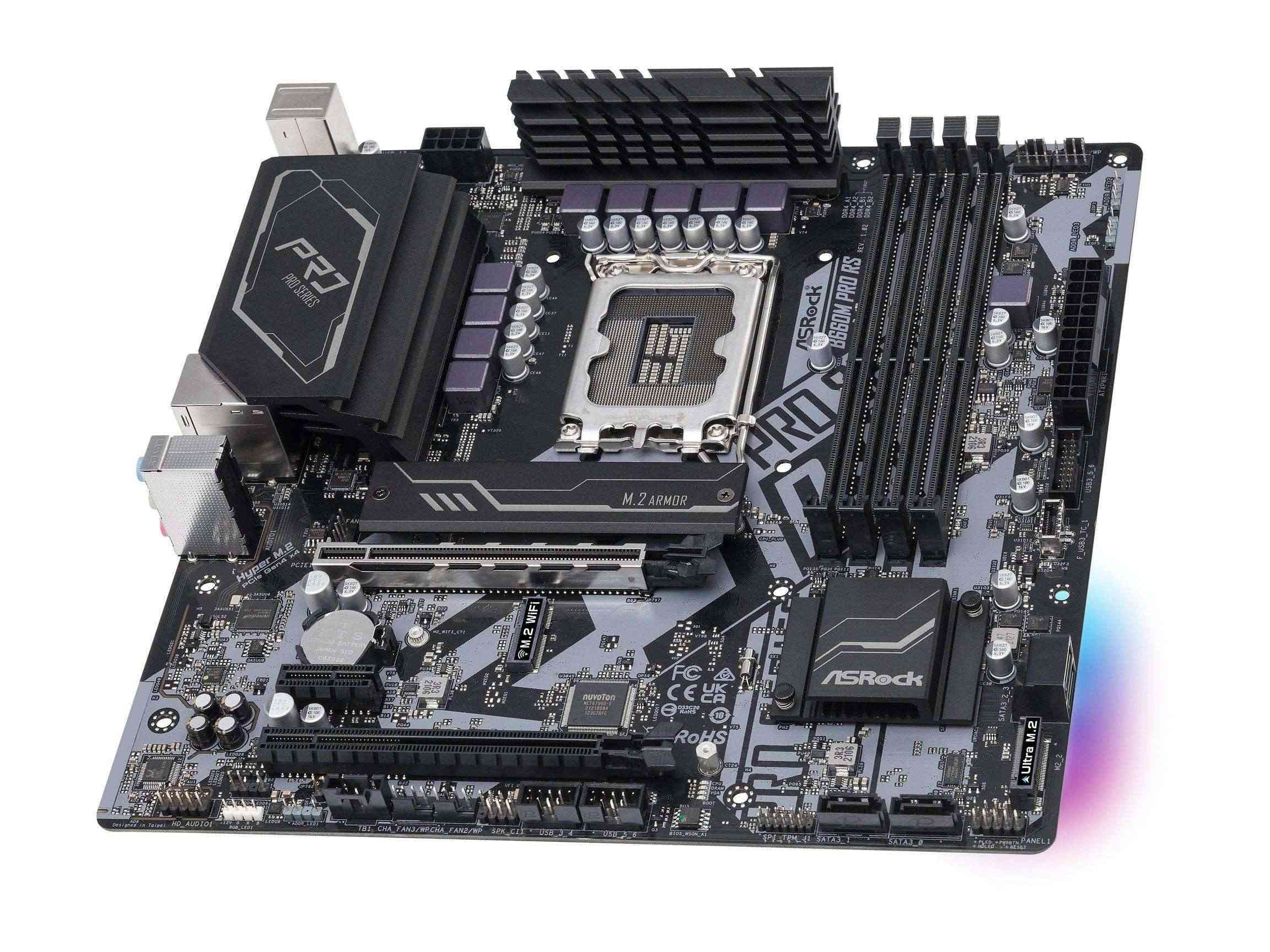

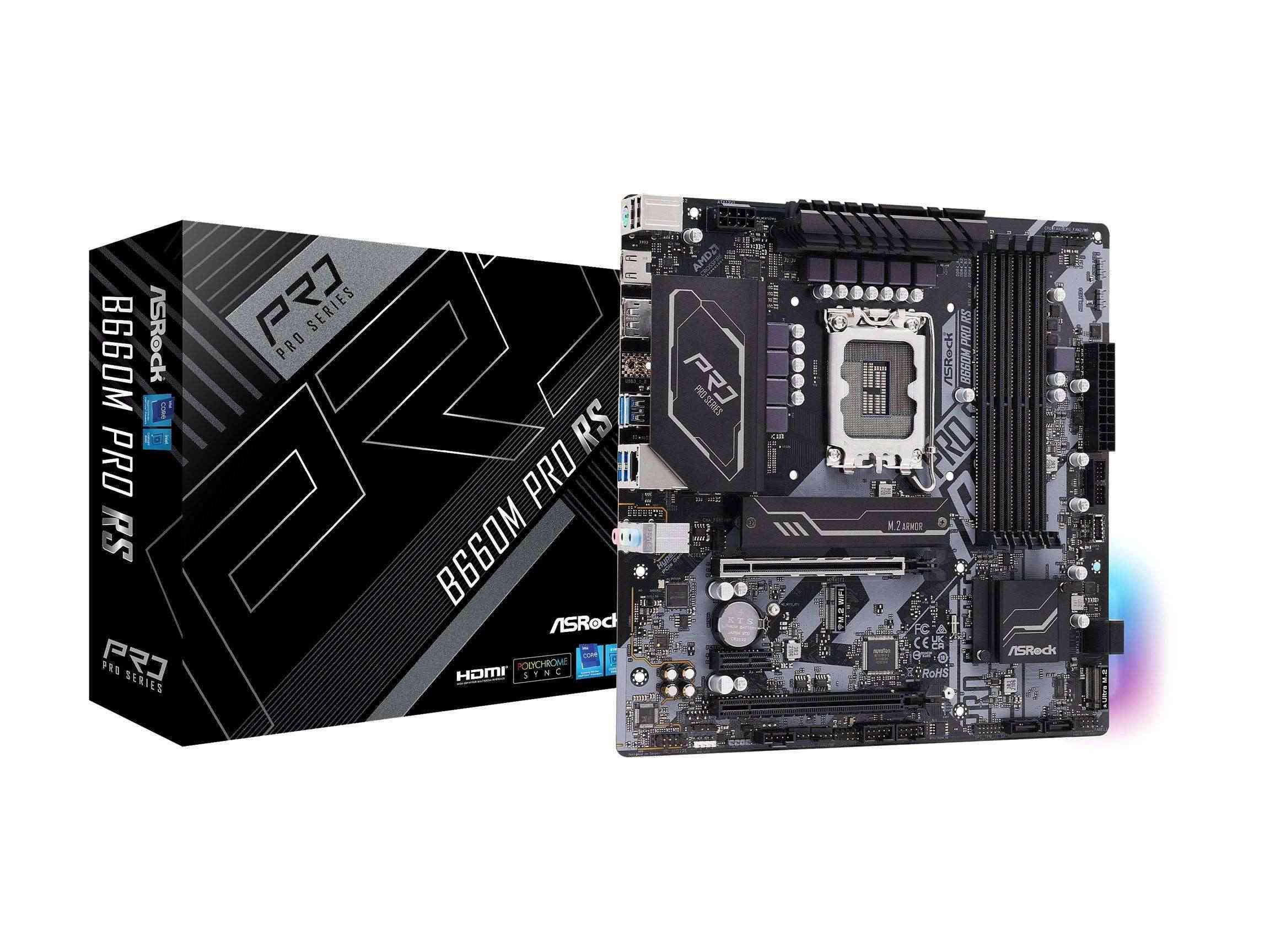

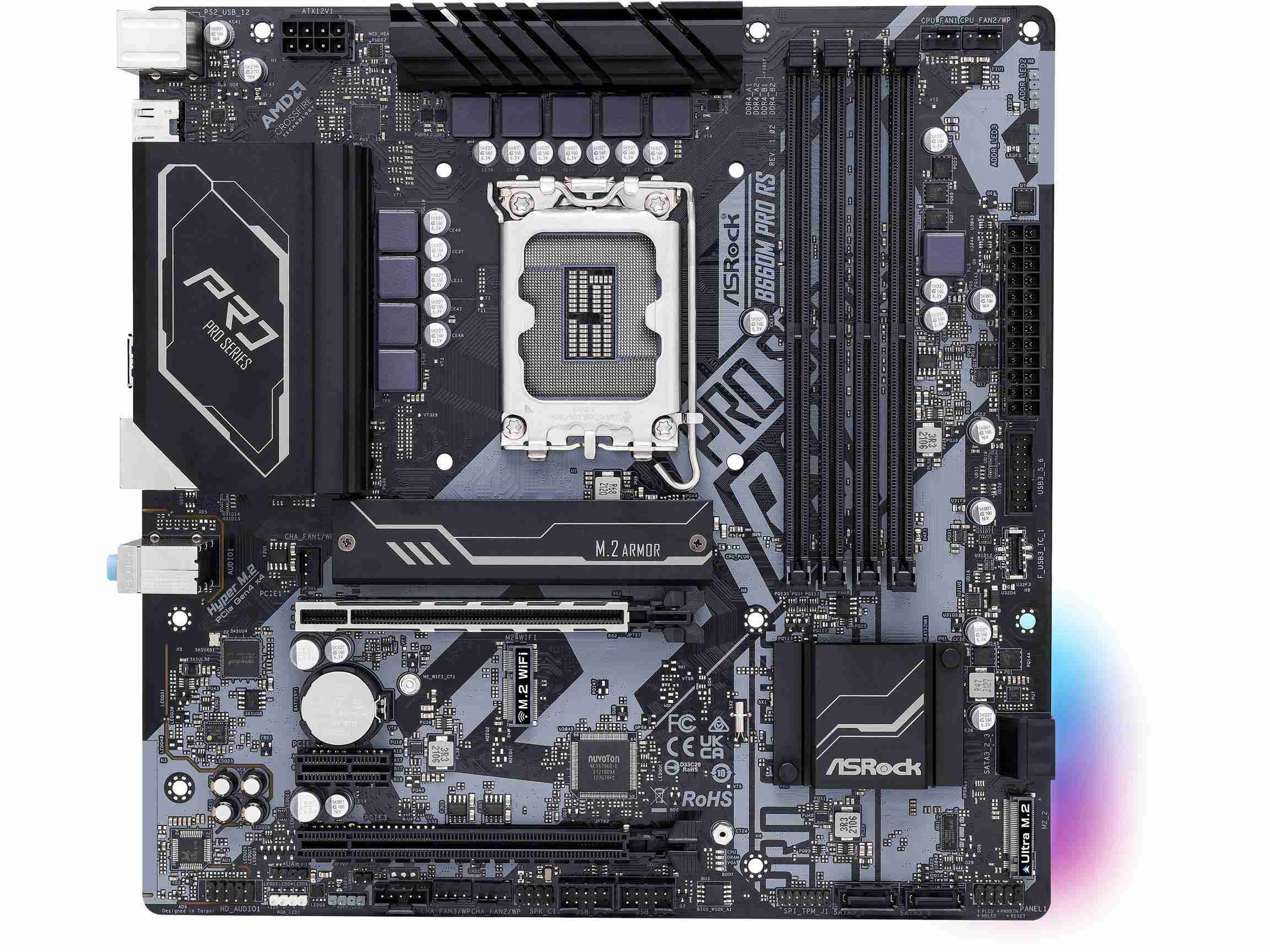

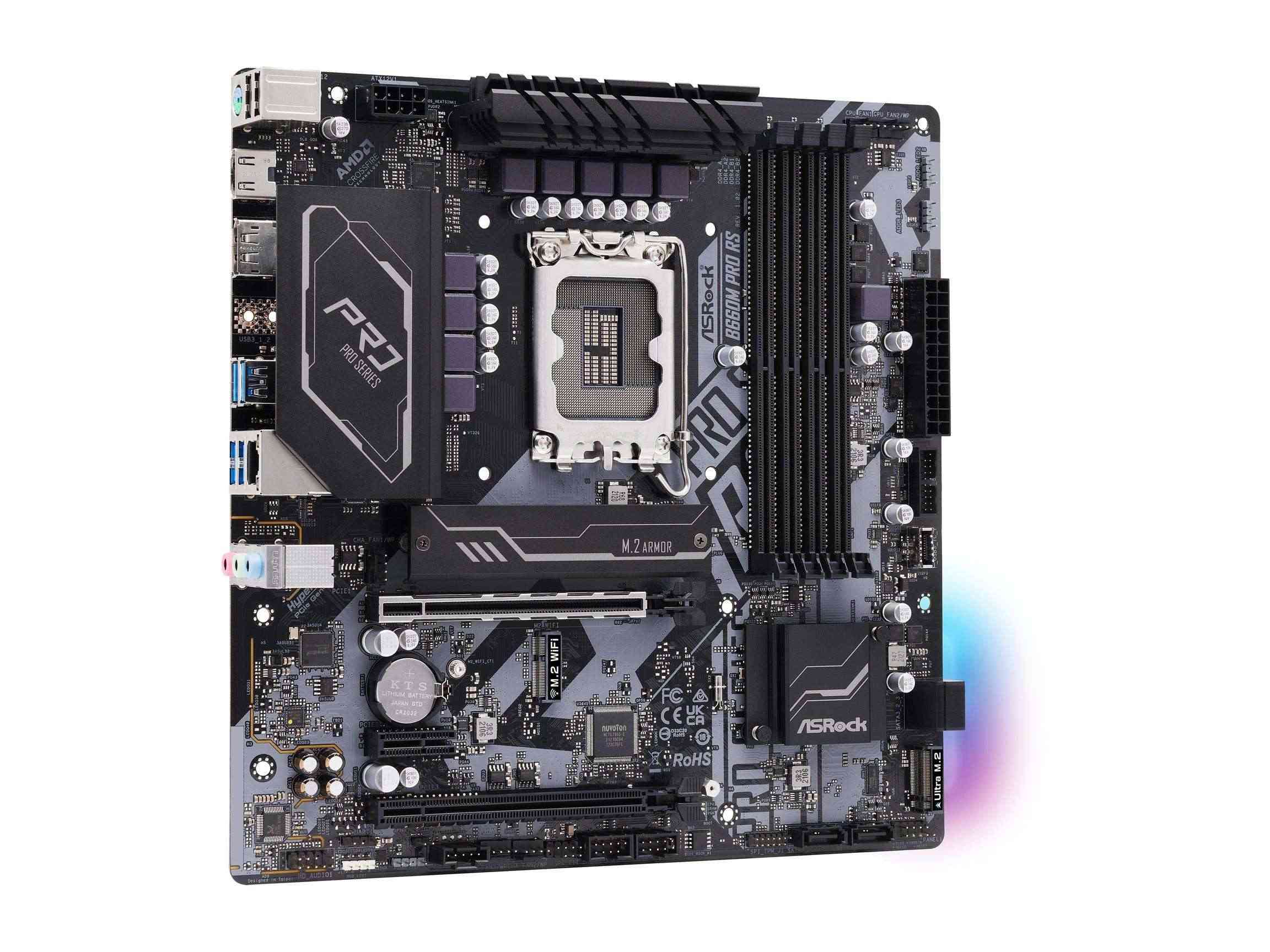

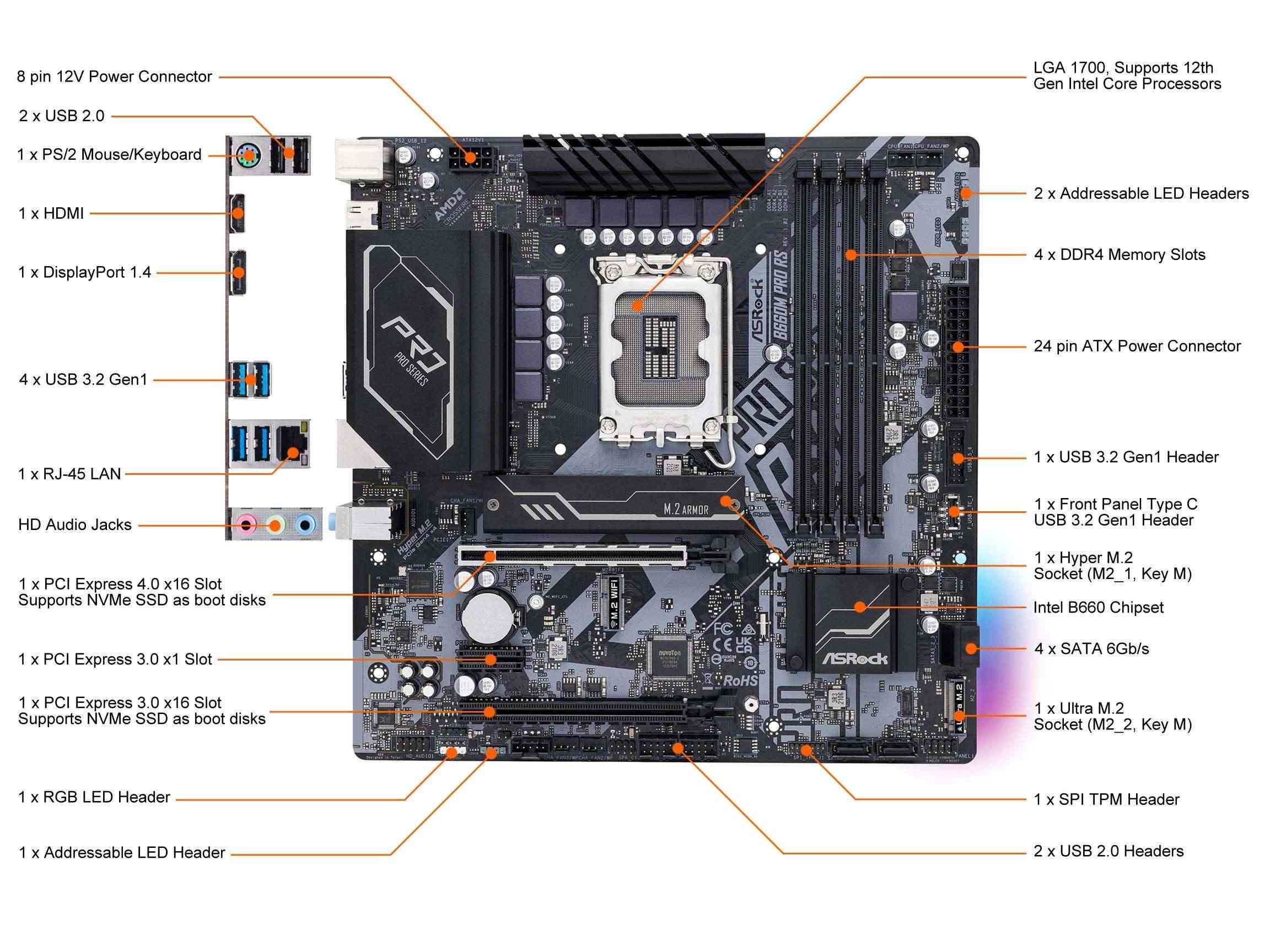

| Model | B660M PRO RS |
|---|---|
| Socket Type | LGA 1700 |
| Manufacturer | ASRock |
| Socket | LGA 1700 |
| Chipset | Intel B660 |
| Supported Processors | 13th / 12th Gen Intel Core, Pentium Gold, Celeron |

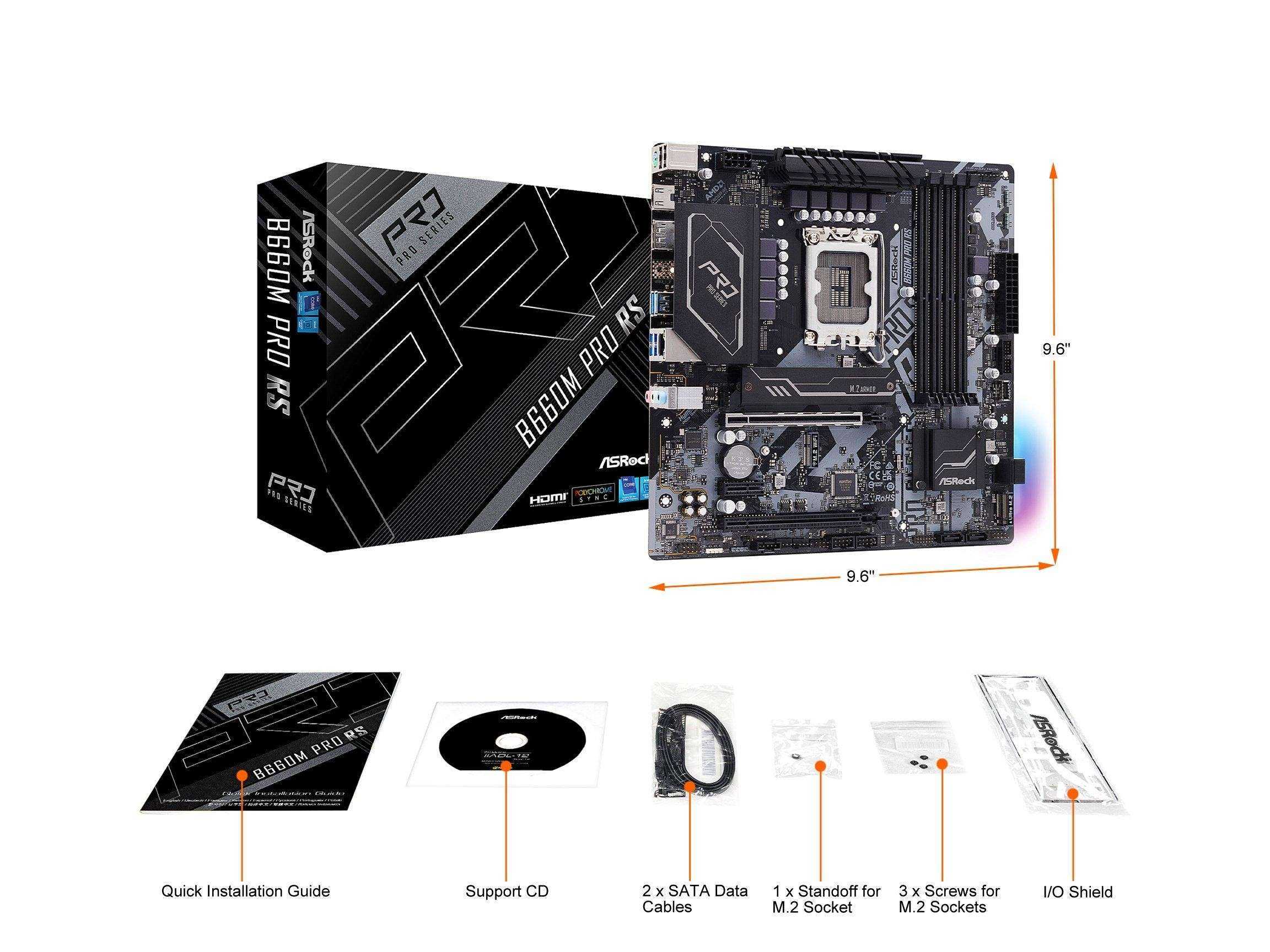

| Form Factor | Micro ATX |
| Memory Type | DDR4 |
| Max Memory Speed | 4800MHz (OC) |
| CPU Support | 13th / 12th Gen Intel Core, Pentium Gold, Celeron |
| Audio | Realtek ALC897 7.1 CH HD Audio, Nahimic Audio |
| Memory Support | DDR4 up to 4800MHz (OC), Dual Channel, 4 DIMMs |
| PCIe Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| Graphics Outputs | HDMI, DisplayPort |
| M.2 Slots | 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 x M.2 Key-E for WiFi |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| SATA Ports | 4 x SATA3 |

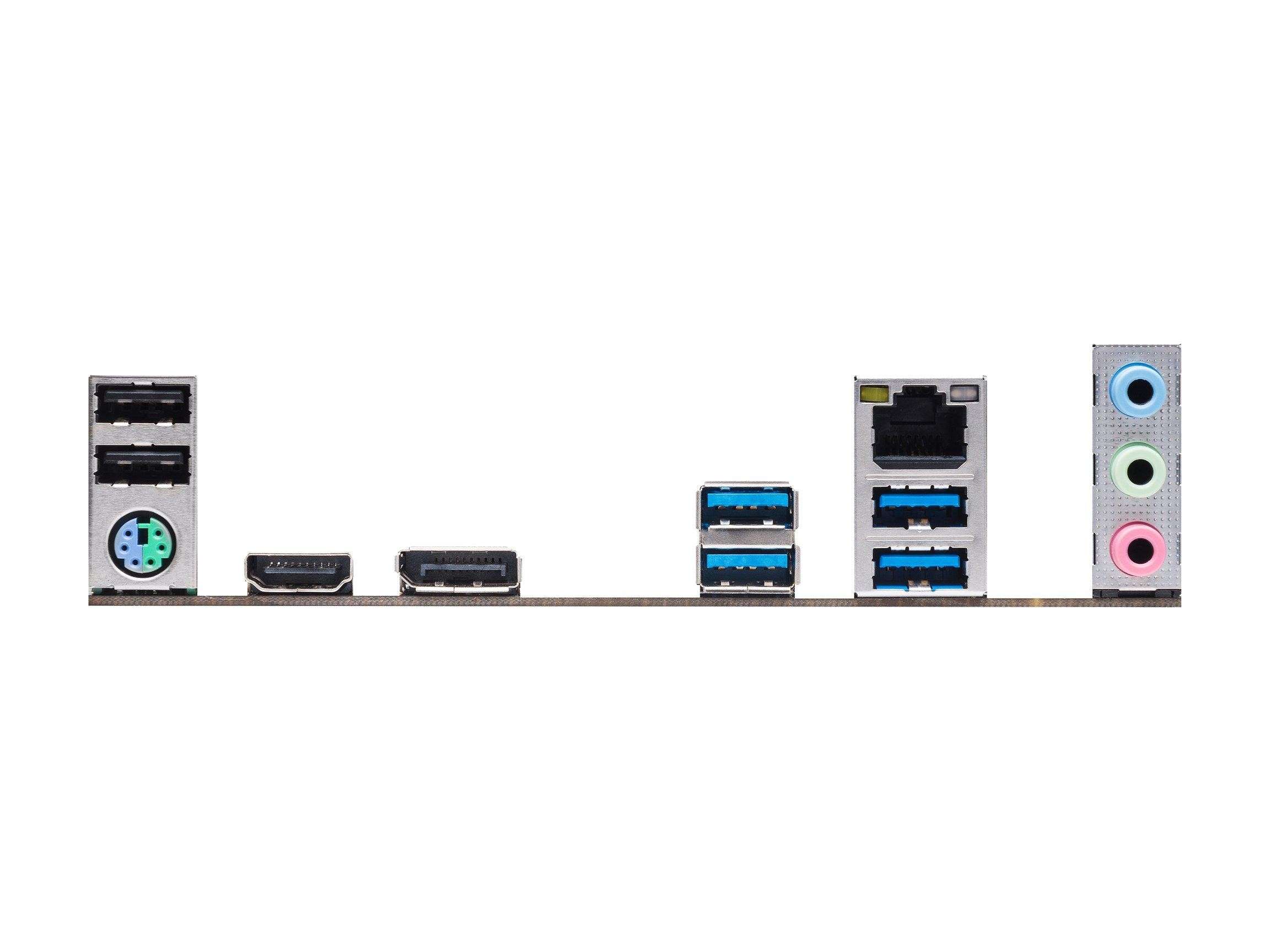

| USB Ports | 7 x USB 3.2 Gen1 (4 Rear, 2 Front, 1 Front Type-C), 6 x USB 2.0 (2 Rear, 4 Front) |
| LAN | Intel Gigabit LAN |
| Audio Codec | Realtek ALC897 7.1 CH HD, Nahimic Audio |
| Power Phases | 8 Phase Power Design |
| Graphics Output | HDMI, DisplayPort |
| WiFi Support | M.2 Key-E Slot (module not included) |
| Power Design | 8 Phase |
| BIOS Update Required | May be required for 13th Gen CPUs |
| SKU | N82E16813162048 |
