ASRock B650M Pro RS WiFi AM5
  • ASRock B650M Pro RS WiFi AM5
  • ASRock B650M Pro RS WiFi AM5
  • ASRock B650M Pro RS WiFi AM5
  • ASRock B650M Pro RS WiFi AM5
  • ASRock B650M Pro RS WiFi AM5
  • ASRock B650M Pro RS WiFi AM5

    • ASRock B650M Pro RS WiFi AM5

    (0 customer reviews) SKU: N82E16813162131
    $0.00
    In Stock

    This product is currently out of stock and unavailable.

    ASRock B650M Pro RS WiFi AM5 motherboard supports AMD Ryzen 7000 and 9000 Series CPUs, DDR5 7200+ MHz memory, PCIe 4.0 graphics, Wi-Fi 6E, Bluetooth, 2.5G LAN, and multiple M.2 slots for high-speed storage.

    • Tool-free installation with slide-and-lock design
    • USB 3.0 with 5Gbps transfer speed and UASP acceleration
    • Compatible with 7mm and 9.5mm 2.5" SATA HDD/SSD
    • Aluminum housing with effective heat dissipation
    Free shipping
    Secure checkout
    SKU: N82E16813162131

    Description

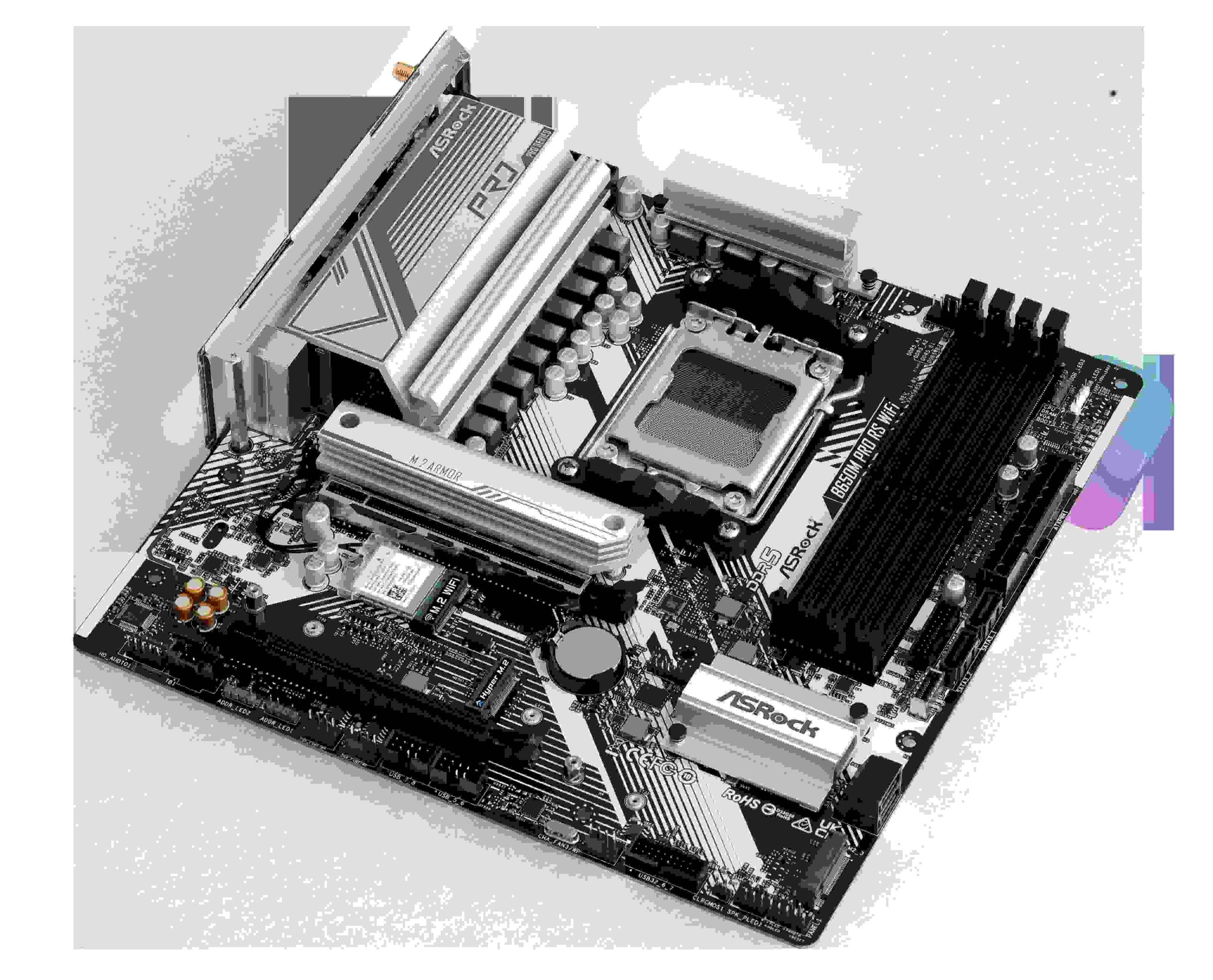

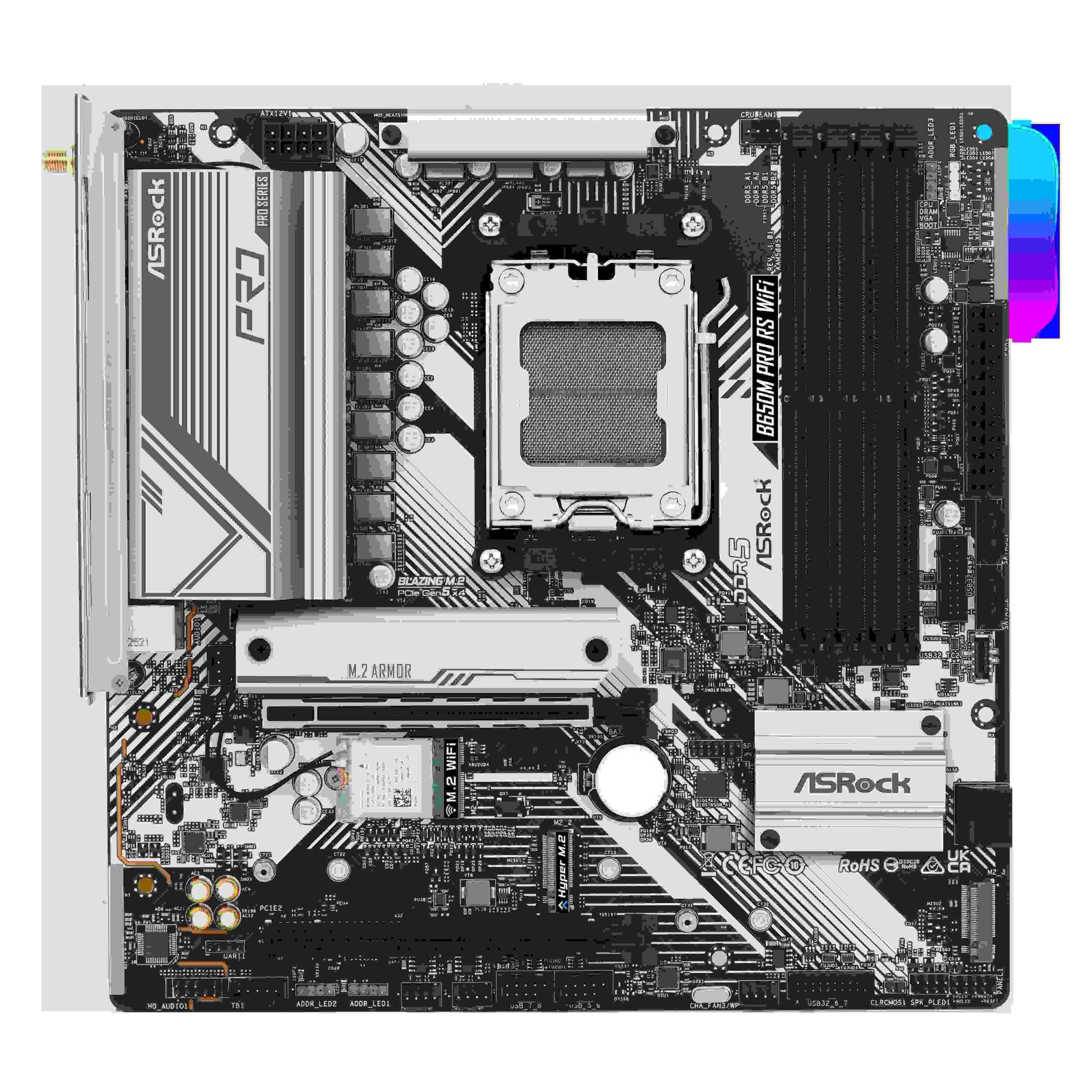

    The ASRock B650M Pro RS WiFi AM5 motherboard is designed to support AMD Ryzen 7000 and Ryzen 9000 Series processors, offering robust power delivery with an 8+2+1 Dr.MOS power phase design. It supports high-speed DDR5 memory up to 7200+ MHz (overclocked) and features multiple PCIe slots including PCIe 4.0 x16 for graphics and PCIe 3.0 x16 for expansion. Storage options are versatile with 4 SATA3 ports and three M.2 slots supporting PCIe Gen5 and Gen4 standards for blazing fast NVMe SSDs. Connectivity is enhanced with Dragon 2.5G LAN, Wi-Fi 6E (802.11ax), and Bluetooth support. Audio is powered by the Realtek ALC897 7.1 channel codec with Nahimic Audio technology. Multiple USB ports are available on both front and rear panels, including USB 3.2 Gen2 Type A+C and USB 3.2 Gen1 Type-C. Graphics output options include HDMI and DisplayPort, making this motherboard a solid choice for gaming and high-performance computing in a compact Micro ATX form factor.

    Additional information

    Processor Support

    AMD Ryzen 7000 Series and Ryzen 9000 Series
    CPU Socket

    AM5
    Memory Slots

    4 DIMM
    Chipset

    AMD B650
    Max Memory Capacity

    128GB
    Memory Type

    DDR5
    PCIe Version

    PCIe 4.0 (x16 slot), PCIe 3.0 (x1 slots)
    Max Memory Speed

    6800MHz (OC)
    Audio Features

    Nahimic Audio support
    Power Phases

    8+2 DrMOS Power Stages
    Wireless Standards

    Wi-Fi 6E (802.11ax), Bluetooth
    Multi-GPU Support

    No (NVLink/SLI not supported)
    LAN Speed

    2.5 Gigabit Ethernet
    SATA Ports

    4 x SATA 6Gb/s
    LAN

    Dragon 2.5G LAN
    M.2 Slots

    3
    WiFi

    WiFi 6E (802.11ax)

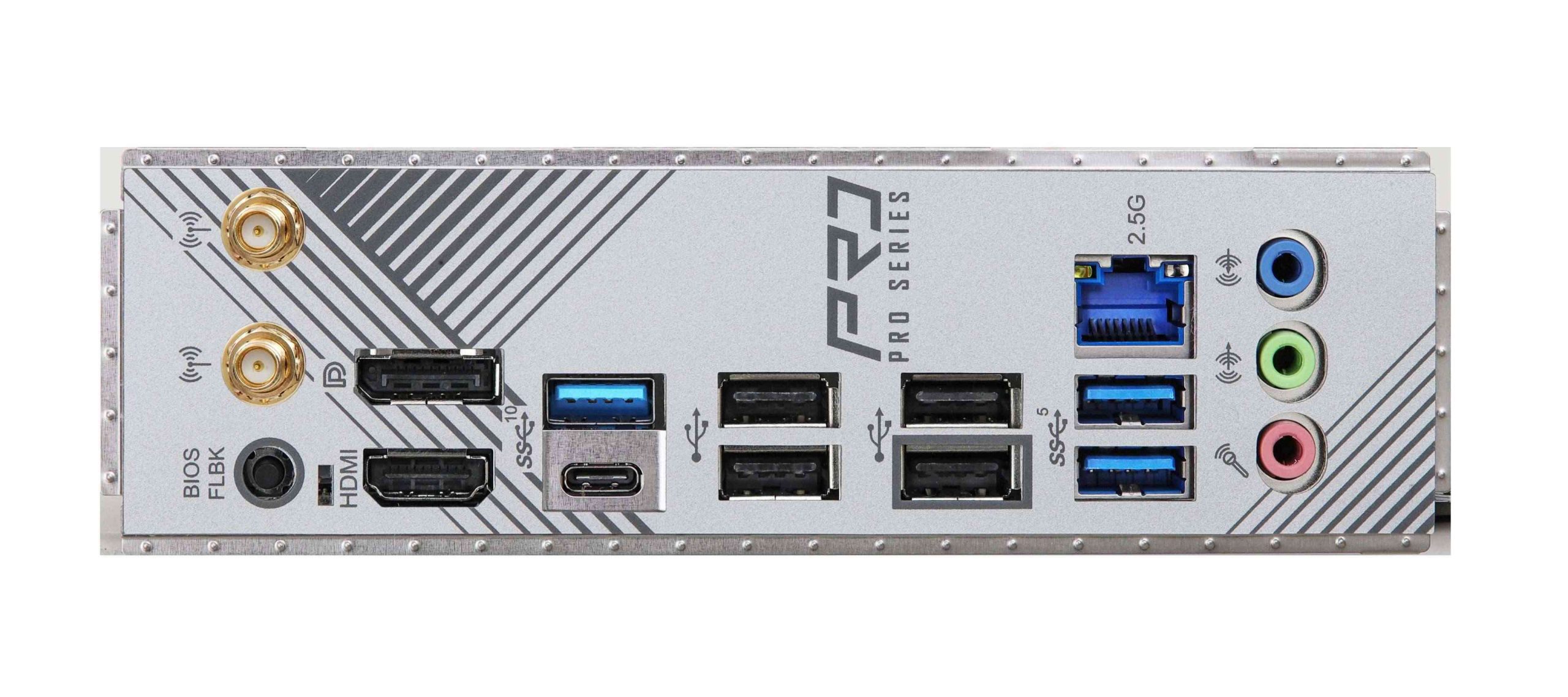

    USB Ports (Rear)

    1 x USB 3.2 Gen2 Type A+C, 2 x USB 3.2 Gen1 Type-A
    Bluetooth

    Yes
    USB Ports Front

    1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A
    Audio Codec

    Realtek ALC897
    Expansion Slots

    1 PCIe 4.0 x16, 1 PCIe 3.0 x16
    Form Factor

    Micro ATX
    Storage Interfaces

    1x PCIe 5.0 M.2, 4x PCIe 4.0 M.2, 6x SATA 6Gb/s
    USB Ports

    Rear: 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 4 x USB 3.2 Gen1, 2 x USB 2.0; Front: Supports additional via headers
    Graphics Outputs

    HDMI, DisplayPort
    BIOS Update Required

    For AMD Zen 3 Ryzen 5000 series CPUs
